Fast Installation NBR PVC Insulation Nitrile Close Cell Foam For Construction
NBR vulcanized rubber insulation material with closed cell structure for pipe, fiber and sheet product, specialized in insulation for refrigeration system, HVAC system and linen industry.
Class 1 product line is a vulcanized rubber foam insulation designed and engineered specifically for the control of water vapor condensation, primarily used for insulating piping systems, dedicated heat system for air conditioning pipes, chilled water pipes and cold pipes. Used as insulation in systems:
- Insulation for cold (steam) pipes.
- Insulation for hot water piping systems.
- Insulation for cold water pipes and freezing systems.
- Sound absorption and sound insulation for the duct system.
Specification:
1. NBR Rubber Foam Sheet:
| Specification of NBR Sheet |
| Thickness(mm) | 6TK | 10TK | 15TK | 20TK | 25TK | 30TK |
| Width(mm) | 1 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 |
| Length(mm) | 30 | 20 | 12 | 10 | 8 | 6 |
| Material | Density±10 | Hardness
Shore C | Tensile Strength | Ultimate Elongation | Max Size |
| NBR/PVC | 55kg/m³ | | ≥120 Kpa | ≥120% | 2000*1000*30mm |
| 75kg/m³ | | ≥120 Kpa | ≥120% | 2000*1000*30mm |
| 100kg/m³ | 25° | ≥1000 Kpa | ≥100% | 2000*1000*30mm |

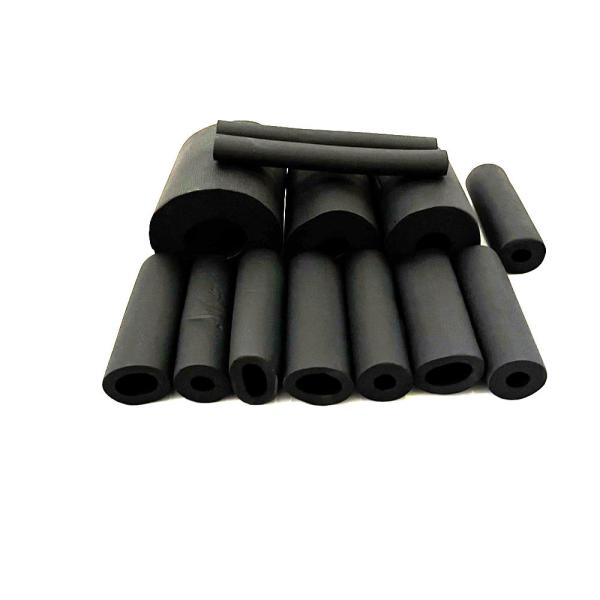

2.NBR Rubber Foam Tube:
| Thickness | inches | 1/4“ | 3/8" | 1/2" | 5/8" | 3/4" | 1" | 1-1/4" |
| mm | 6 | 9 | 13 | 15 | 20 | 25 | 30 |
| ID | Size
ID*TK | Size
ID*TK | Size
ID*TK | Size
ID*TK | Size
ID*TK | Size
ID*TK | Size
ID*TK |
| mm | inches |
| 6 | 1/4" | 6*6 | 6*9 | 6*13 | 6*15 | 6*20 | 6*25 | / |
| 10 | 3/8" | 10*6 | 10*9 | 10*13 | 10*15 | 10*20 | 10*25 | / |
| 13 | 1/2" | 13*6 | 13*9 | 13*13 | 13*15 | 13*20 | 13*25 | / |
| 16 | 5/8" | 16*6 | 16*9 | 16*13 | 16*15 | 16*20 | 16*25 | 16*32 |
| 19 | 3/4" | 18*6 | 19*9 | 19*13 | 19*15 | 19*20 | 19*25 | 19*32 |
| 22 | 7/8" | 22*6 | 22*9 | 22*13 | / | 22*20 | 22*25 | 22*32 |
| 25 | 1" | 25*6 | 25*9 | 25*13 | 25*15 | 25*20 | 25*25 | 25*32 |
| 28 | 1-1/8" | 28*6 | 28*9 | 28*13 | / | 28*20 | 28*25 | 28*32 |
| 32 | 1-1/4" | 32*6 | 32*9 | 32*13 | / | 32*20 | 32*25 | 32*32 |
| 35 | 1-3/8" | 35*6 | 35*9 | 35*13 | / | 35*20 | 35*25 | 35*32 |
| 38 | 1-1/2" | / | 38*9 | 38*13 | / | 38*20 | 38*25 | 38*32 |
| 42 | 1-5/8" | / | 42*9 | 42*13 | / | 42*20 | 42*25 | 42*32 |
| 45 | 1-3/4" | / | / | / | / | / | / | / |
| 48 | 1-7/8" | / | 48*9 | 48*13 | / | 48*20 | 48*25 | 48*32 |
| 50 | 2" | / | 50*9 | 50*13 | / | / | / | / |
| 54 | 2-1/8" | / | 54*9 | 54*13 | / | 54*20 | 54*25 | / |
| 57 | 2-1/4" | / | / | / | / | / | / | / |
| 60 | 2-3/8" | / | 60*9 | 60*13 | / | 60*20 | 60*25 | 60*32 |
| 64 | 2-1/2" | / | / | / | / | / | / | / |
| 67 | 2-5/8" | / | / | / | / | / | / | / |
| 70 | 2-3/4" | / | / | / | / | / | / | / |
| 73 | 2-7/8" | / | / | / | / | / | / | / |
| 76 | 3" | / | / | 76*13 | / | 76*20 | 76*25 | 76*32 |
| 80 | 3-1/8" | / | / | / | / | / | / | / |
| 89 | 3-1/2" | / | / | 89*13 | / | 89*20 | 89*25 | 89*32 |
| 102 | 4" | / | / | / | / | / | / | / |
| 108 | 4-1/4" | / | / | / | / | / | 108*25 | 108*32 |
The comparison between EPDM ,NBR and CR foam rubber:
| Comparison of rubber foam performance parameters |
| Performance | EPDM Rubber Foam | NBR Rubber Foam | CR Rubber Foam |
| Aging resistance | good | poor | good |
| electrical insulation | very good | poor | poor |
| preservative | good | general | good |
| Impact elasticity | good | general | -- |
| Adhesion properties | poor | good | -- |
| Oil resistance | no | very good | good |
| Wear resistance | good | good | -- |
| Heat resistance | very good | good | good |
| Cold resistance | very good | poor | poor |
| Ozone resistance | good | -- | good |
| Weather resistance | very good | general | very good |
| Flame resistance | no | -- | good |
| Acid resistance | good | good | general |
| Alkali resistance | good | good | good |
FAQ:
Q1:Do you accept customized foam products ?
We have customized production service, we can produce foam products as per client’s requests.
Q2:What’s the kinds of Foam you can provide ?
We are your one stop foam products supplier. We can provide IXPE foam, XLPE foam, EVA foam,EPDM foam,NBR foam,CR foam,PU foam,MPP foam,MTPU foam, PVDF foam and foam products(foam camping mat,foam floating mat, foam wallpaper, car floor mat)
Q3:.How to get samples ?
Send enquiry to cissy@eco-polyfoam.com, with your details of the foams need, we will check reply in 24 hour.
